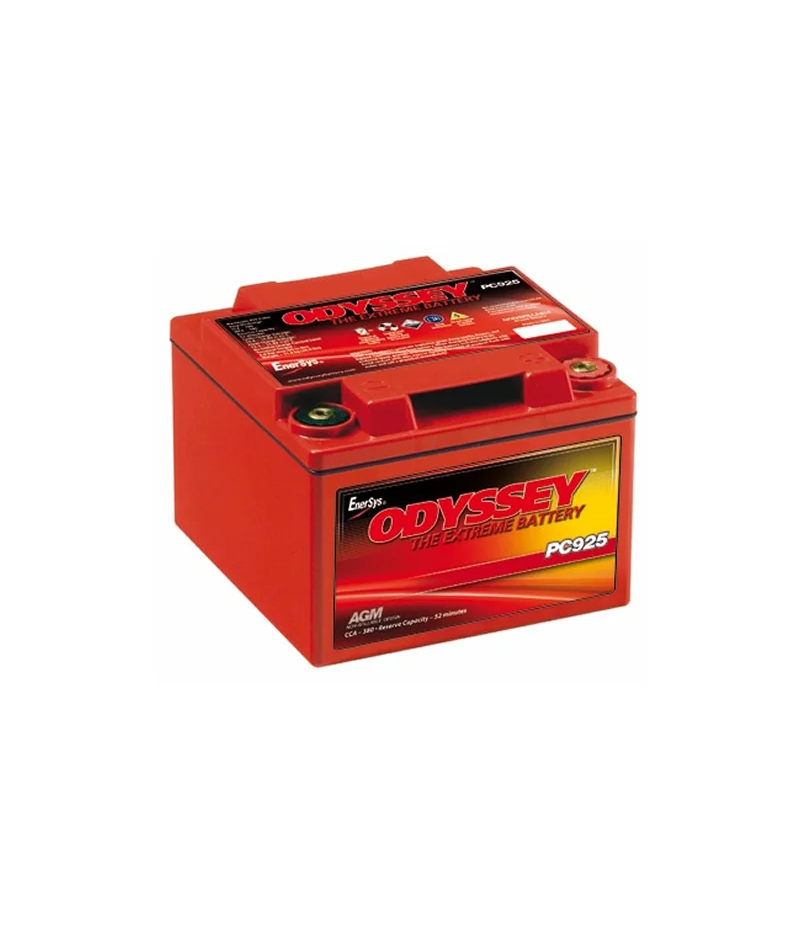

Odyssey PC925MJ ODS-AGM28LMJ
$759.00
We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.
As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.
Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn’t enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.
So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.
This battery was the NZ Super Tourers category specified race battery and is the entry point for V8 vehicles or street driven race cars 2.0L upwards.
Typically the largest battery required for rally cars, its a Honda Jetski replacement battery being a U1 size replacement. It’s also the same size as mobility scooter batteries 24-28Ah so if you needed high power output for short duration hill climbing this should be considered.
PC925MJT includes metal jacket and terminals.
| Pulse Amps |
Cold Cranking Amps |
Hot Cranking Amps |
Marine Cranking Amps |
Nm max torque on terminal |
mΩ Internal Resistance |
Short Circuit Current |
| 900 | 330 | 610 | 480 | 6.8 | 5 | 2400 |
28Ah @ 20hr rate – that’s 1.4A for 20 hours until the battery voltage is 10.5V
27Ah @ 10hr rate – that’s 2.7A for 10 hours until the battery voltage is 10.5V
Reserve Capacity 48 minutes at 25A discharge
Terminal Features include:
Encapsulated M6 bolt fastened using an M5 Allen key
Coarse thread Heli-coil inserts and bolt supplied so you can fasten large eyelets to the top of the terminal like a marine or dual purpose terminal
Terminals are removable with an Allen key to reduce battery height and they use an M6 bolt insert.
| Weight | 11.8 kg |
|---|---|
| Dimensions | 168.6 × 179 × 148.08 mm |
