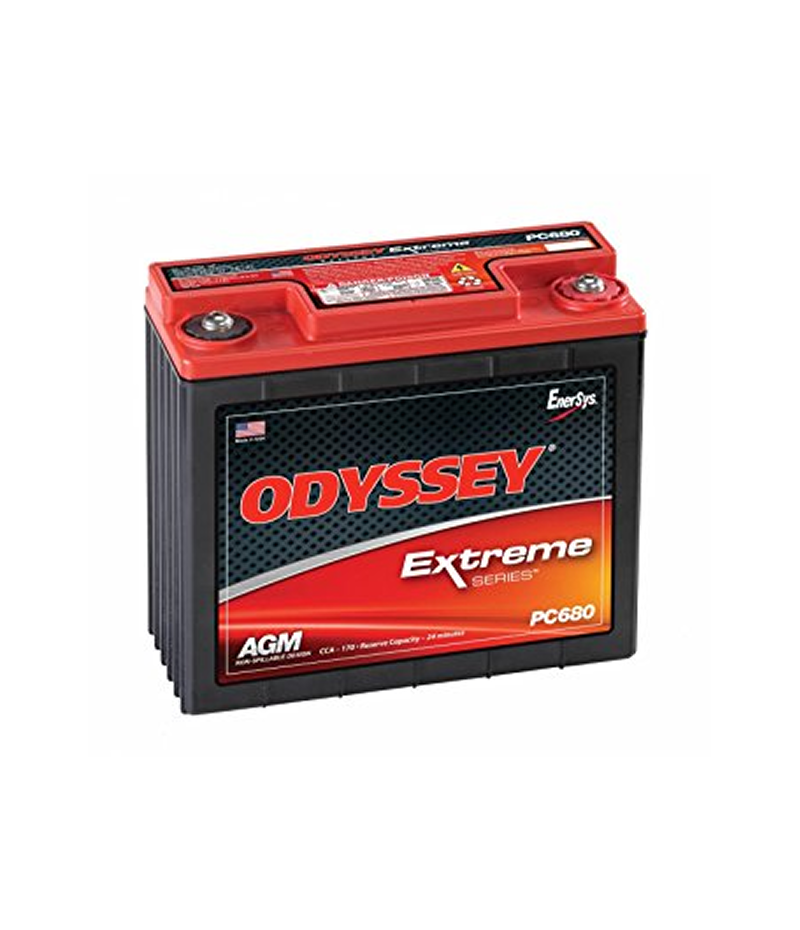

Odyssey PC680 ODS-AGM16L
$505.00
We have seen substantial growth in the range of Odyssey batteries (from EnerSys), with this development we have seen both an increase in the products available but also a change in the product codes and the marketing segmentation.
As an example, here in New Zealand, we originally only imported the PC680MJT model (Metal Jacket and Terminals) it was commonly referred to as PC680 battery. Later we offered these model batteries without the MJT, as being popular with the Aviation industry and imported Aircraft industry. The same has happened with the PC925 variations.
Many models included the Extreme Series tagline, Performance Series, or PowerSport to help define applications, but people use batteries for so many applications this description wasn’t enough. With the introduction of new BCI sizes like the 48-720 with traditional housings and mounting feet wedges for OEM installations and DIN sizes.
So, to give you the most up-to-date information on the changes to the battery identifiers now, please review the following information to help you understand these changes.
However, if you have any question’s please feel free to contact us.
Odyssey PC680 (note no MJ) MJ is the orange metal jacket you would normally see on the battery as we have sold them previously.
Now with many customers having imported vehicles and airplanes with the cheaper battery because of no jacket or terminals we are stocking both variations.
Yes we have created an issue for ourselves as everyone called the original battery PC680 but it was actually a PC680MJT (the T means Terminals, MJ the Metal Jacket).
Specs are the same as the PC680MJ of course.
| Pulse Amps |
Cold Cranking Amps |
Hot Cranking Amps |
Marine Cranking Amps |
Nm max torque on terminal |
mΩ Internal Resistance |
Short Circuit Current |
| 520 | 170 | 350 | 280 | 5.6 | 7 | 1800 |
16Ah @ 20hr rate – that’s 0.8A for 20 hours until the battery voltage is 10.5V
16Ah @ 10hr rate – that’s 1.6A for 10 hours until the battery voltage is 10.5V
Reserve Capacity 24 minutes at 25A discharge
Automotive Terminals can be purchased for $15
Terminal Features include:
Encapsulated M6 bolt fastened using an M5 Allen key
Coarse thread Heli-coil inserts and bolt supplied so you can fasten large eyelets to the top of the terminal like a marine or dual purpose terminal
Terminals are removable with an Allen key to reduce battery height and they use an M6 bolt insert.
| Weight | 7 kg |
|---|---|
| Dimensions | 185 × 79 × 167 mm |
